Direct import from China

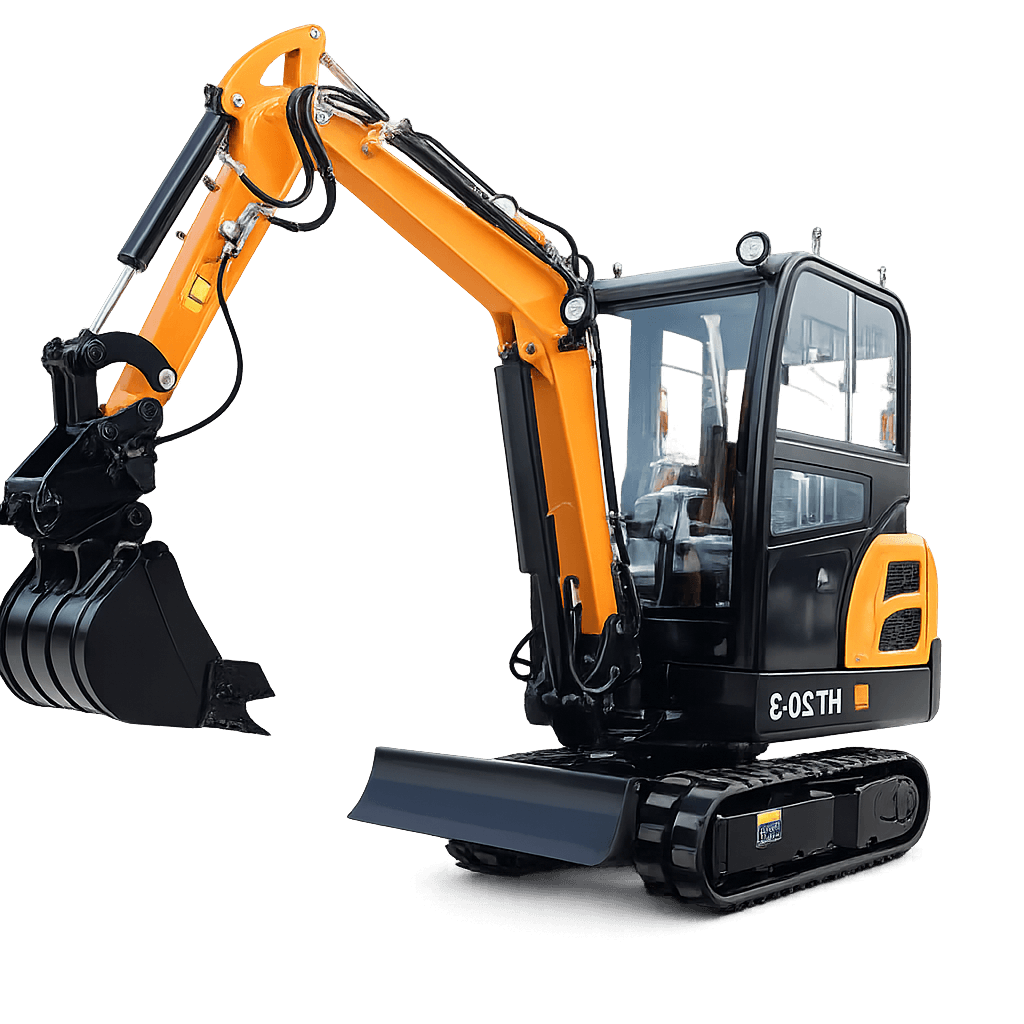

HT20 mini excavator
Two-ton mini excavator available with cab and Euro 5 / EPA engine.
Price€10.809 + cab €603
Indicative price. Ask us to confirm configuration, transport, and availability.
Request a quote for this model Coordinated import and delivery Local support after delivery
HT20-3
Specifications
Complete technical data for this model configuration.
- Dimensions (LxWxH)
- 4,170 x 1,300 x 2,280 mm
- Axle Base (Track on Ground)
- 1,230 mm
- Track Gauge
- 1,070 mm
- Min Ground Clearance
- 230 mm
- Swing Radius at Tail
- 1,180 mm
- Max Travel Speed
- 3.5 km/h
- Track Shoe Width
- 230 mm
- Track Shoes per Side
- 38 pcs
- Upper Rollers per Side
- 0
- Bottom Rollers per Side
- 4
- Emission Standard
- Euro 5 / EPA
- Engine Model
- KUBOTA
- Power / Rotation Speed
- 14.1 kW / 2,000 RPM
- Horsepower
- 19 HP
- Number of Cylinders
- 3
- Bucket Capacity
- 0.1 m³
- Swing Speed
- 12 RPM
- Max Gradeability
- 30°
- Max Bucket Digging Force
- 15.3 kN
- Max Arm Digging Force
- 10.5 kN
- Hydraulic System Pressure
- 18 MPa
- Machine Weight
- 2,000 kg
- Arm Length
- 1,000 mm
- Max Digging Height
- 3,700 mm
- Max Dumping Height
- 2,290 mm
- Max Digging Depth
- 2,450 mm
- Max Vertical Digging Depth
- 2,160 mm
- Max Digging Radius
- 4,370 mm
- Min Swing Radius
- 2,020 mm
- Max Blade Lift Height
- 240 mm
- Max Blade Cutting Depth
- 310 mm
- Boom Swing Angle (L / R)
- 75° / 45°
