HT25
Direct import from China

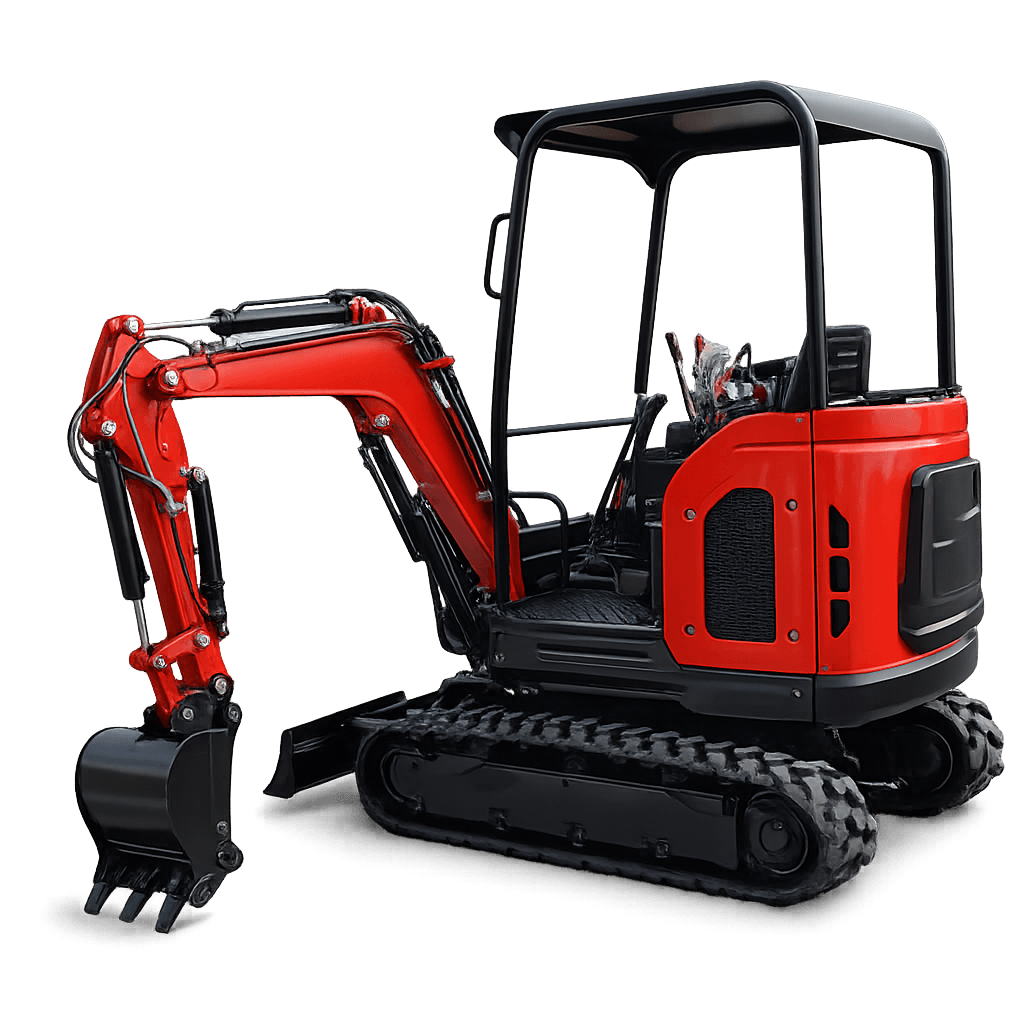

HT25 mini excavator
Versatile 2.5-ton excavator powered by a Kubota D1105 engine.
Price€11.472 + cab €603
Indicative price. Ask us to confirm configuration, transport, and availability.
Request a quote for this model Coordinated import and delivery Local support after delivery
HT25
Specifications
Complete technical data for this model configuration.
- Dimensions (LxWxH)
- 3,865 x 1,050 x 2,270 mm
- Axle Base (Track on Ground)
- 1,230 mm
- Track Gauge
- 820 mm
- Min Ground Clearance
- 210 mm
- Swing Radius at Tail
- 1,125 mm
- Max Travel Speed
- 3.5 km/h
- Track Shoe Width
- 230 mm
- Track Shoes per Side
- 38 pcs
- Upper / Bottom Rollers
- 0 / 4
- Emission Standard
- Euro 5 / EPA
- Engine Brand / Power
- Kubota D1105 14.2 kW
- Horsepower
- 19 HP
- Number of Cylinders
- 3
- Bucket Capacity
- 0.06 m³
- Swing Speed
- 10 ~ 12 RPM
- Max Gradeability
- 35°
- Max Bucket Digging Force
- 14 kN
- Max Arm Digging Force
- 10 kN
- Hydraulic System Pressure
- 18 MPa
- Machine Weight
- 2,500 kg
- Arm Length
- 1,000 mm
- Max Digging Height
- 3,365 mm
- Max Dumping Height
- 2,385 mm
- Max Digging Depth
- 2,050 mm
- Max Vertical Digging Depth
- 1,725 mm
- Max Digging Radius
- 3,860 mm
- Min Swing Radius
- 1,720 mm
- Max Blade Lift Height
- 230 mm
- Max Blade Cutting Depth
- 275 mm
- Boom Swing Angle (L / R)
- 75° / 45°
